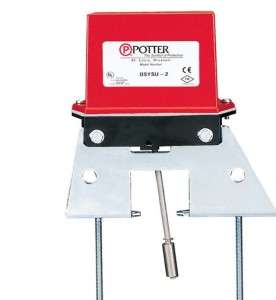

The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. This device is available in two models; the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS&Y valves ranging in size from 2” to 12” (50mm to 300mm). They will mount on some valves as small as ½” (12,5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. NOTE: THE PRICE HAS BEEN REDUCED AS THE TAMPER PROOF TOOL IS NOT INCLUDED.
Specifications
- Dimensions
- Weight - 1.6 lbs (.73 kg)
- Enclosure
-
- Cover: Die Cast Finish: Red Powder Coat
- Base: Die Cast Finish: Black Powder Coat
- All parts have corrosion resistant finishes
- Cover Tamper
- Tamper Resistant Screws
- Optional Cover Tamper Switch Available
- Contact Ratings
-
- OSYSU-1: One Set of SPDT (Form C)
- 10.0 Amps at 125/250 VAC
- 2.0 Amps at 30VDC Resistive
- 10 mAmps minimum at 24 VDC
- Environmental Limitations
-
- -40º F to 140ºF (-40ºC to 60ºC)
- NEMA 4X (IP 65) and NEMA 6P (IP 67) Enclosure
- (Use suitably rated conduit and connector)
- Indoor or Outdoor Use (See OSYSU-EX Bulletin
- 5400705 for Hazardous locations)
- Conduit Entrances - 2 knockouts for 1/2" conduit provided
- Service Use
NOTE: THE PRICE HAS BEEN REDUCED AS THE TAMPER PROOF TOOL IS NOT INCLUDED.
Product Code: 1010106
